Hatch Sliders

When I bought Live Magic (Vic back then!) she had some plastic to allow the hatch to slide open and closed. I think this was at some stage the plastic rubbing strip found on some dinghies but had long since suffered at the hands of the elements. This plastic was wavy for want of a better word, and the hatch would jump up and down as it was opened and closed with the most awful screeching noises. Fast forward a few years while I ignored the situation and I plonked a dinghy on the coachroof following a trip to the pub. The plastic snapped. Bugger. So, on to the fix or so you'd imagine. Not quite. Plastic comes in various shapes, sizes and types. I looked high and low for something appropriate to no avail. My dad then surprised me by coming up with some UPVC window strip which was a perfect fit (mine being 40mm x 5mm thanks to various wear and tear). This was THE answer clearly. It was the right size, the right shape, and £3 a strip. Dad only had just over a metre though, so off we went to B&Q who had 45mmx5mm or 40mm x 7mm both of which would require filing a larger hole on the hatch, and I hate removing bits of the boat permanently. So, long story short I cut the bit my dad had in half and suffered with half sliders for a while. A long while. Nearly a year. This was fine, except that every time I opened the hatch it would scrape on the roof, and every time I closed it, I'd have to line up with the shorter sliders to lock it. This was tiresome, but my laziness knew no bounds. Someone else mentioned stainless sliders on a forum or Facebook a while back so while bored I googled stainless bar on a whim and it was cheap. Really cheap, why had I held out for plastic?!

So I bought some. The sliders needed to be 1120mm length and the flat bar in 40mm x 5mm was available in 250mm increments so I bought two 1250mm lengths plus a 250mm length for testing. This is important in all your boating DIY endeavours, ALWAYS buy an extra bit for testing!
So, upon arrival, I measured a second time on the boat and marked up length and width with a sharpie (permanent marker). Width of the runner was obviously 40mm but width of what I would screw into wasn't, and on the Vivacity goes from about an inch to about 2/3 inch over the length in question so the holes would need to line up. As you'll see later the holes had to be pre-drilled (another vote for plastic!!). I then cut them to length with a hacksaw. This took AGES. 316 Stainless bar hates tools and saps energy. Maybe I'm just weak but I like to think I can cut a bit of metal without trouble!

So next step was some holes. How far apart? Well here I happened to have some (wrong sized) UPVC strip to hand due to an earlier error. Realistically, for about £3 it was worth it just for this testing. As you can see in the pic I tried a hole pattern to see how it looked. I tried two in fact, and the closer spacing won, with 6 holes in total. Some quick match led to spacing evenly with a nice gap at the end, all spacing done for aesthetics really since this bar is going nowhere with 5, 6 or 7 screws.

So...drilling...did I mention that 316 stainless hates tools? I Googled and found I needed HSS drill bits. A friend later told me cobalt works better, and he knows what he's doing. He also said go slow and use a cutting compound which seems like sage advice. I used the other advice plastered all over the Internet. This advice goes thusly...stainless will work harden when you do anything so be sure to make a cut first time and keep going. This advice works but anyone with empathy for their tools will weep. The first hole was smoking, literally. Hot as hell but made it through with a reasonably neat hole. I'm pretty sure this is not the optimum method but I managed 12 good holes. The HSS countersink seemed particularly pissed off with me, and performed exactly the manoeuvre the Internet foretold with a very bumpy ride. Anyway, it all worked and the therapy has allowed me to forget what I did to the bits and the drill.

Speaking of drill, you will literally kill yourself with a hand held drill, so I once again brought out the pillar drill (you may remember the pillar drill from my teak project with plugs). This is important. Use a guide, you'll see my homemade guide in the pics which is a bit of wood bolted tight to allow me to slide the bar along and keep holes in the same place. This means I could position accurately without effort and also that I could revisit every hold accurately with the countersink since they were all the same distance from the side of the bar.
Safety safety safety with this stuff. Wear gloves for the heat, I touched the drill bit at one point to see if it was hot. It was. Wear goggles for the flying shrapnel since they cost £2 and your eyes are priceless. Wear a dust mast because the stuff in stainless is evil and will destroy your lungs. Maybe not drilling but sanding without doubt.

This pic shows the drilled and countersunk holes. Notice how dull the bar is, this needed fixing. I went and bought a bench grinder and metal polishing kit online to shine it up a bit. Sadly I underestimated the metal again and the surface pitting from manufacture was quite deep and could not be polished. When I finally (after many hours of using wet and dry paper) realised that metal is just REALLY hard shiny wood, I tried some 120 grit paper and started to make progress. Painful progress but progress nonetheless. I bought a belt sander to speed things up, since this is basically a linisher without the fancy stand, safety, built for purpose type features. This was amazingly better. Belt sanders will destroy anything in a hurry and so obviously I had to be careful. I used the 80 grit to start and get the pits out. Clamp your bar down to allow you to forget about projectile weapons and work on sanding. I moved up from 80 grit to 100 then back to manual sanding with 240, 400 then 600. This was all 2 days into the project so frankly I'd lost interest in a mirror shine by now and spent too little time finishing off. As luck would have it, I actually realised the folly of mirrored surfaces on the coachroof in summer. Not ideal to suddenly see the full fury of the Sun while tacking!

So what you see is a compromise between laziness, effort, results, and being able to see on a sunny day. It's quite shiny but not completely reflective. The steel fits well, and will likely never break. It is, however, really REALLY hard to work with. It's also cold and uncomfortable to lean on compared to plastic and adds weight to a boat which could probably do with dropping a few pounds. Overall I'm happy with the results, but this is one of the hardest projects I've done and I hope to not need stainless again for a while as it's harder than rocks!

Using the tabernacle

Having had the boat a few years now, I've taken the mast down and put it back up a fair few times. Firstly to install the roller reefing, then various maintenance tasks such as adding tape to the spreaders to stop (another) rip in the cruising chute. Most of the time I do this by myself these days having developed a bit of a technique over the years so I thought I'd share this "wisdom" with you, the Internet. This is probably not the best way of removing a mast in a tabernacle, but it works for me.

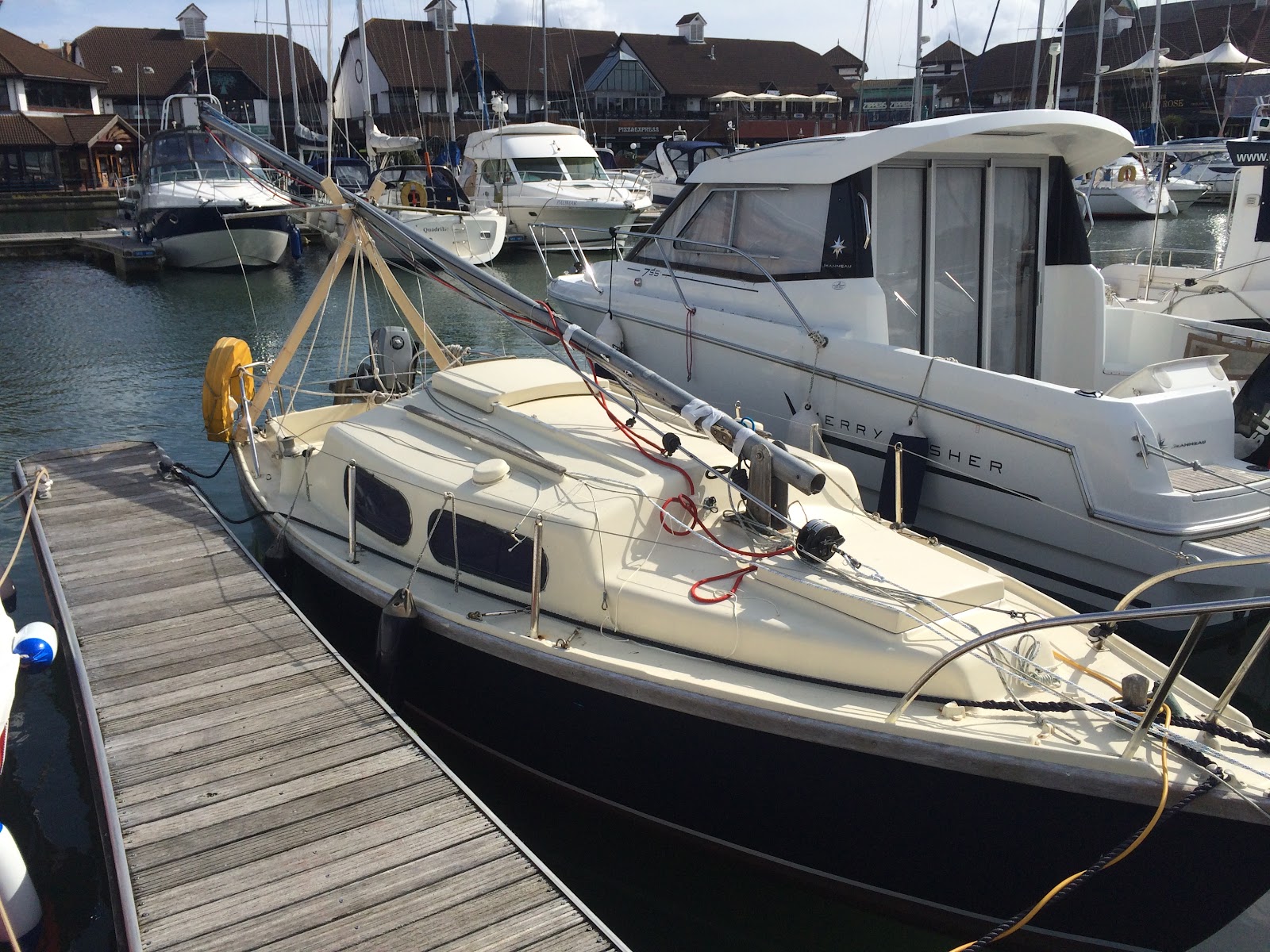

Step one is preparation. This is really, really important as surprises half way through are not fun at all (trust me!). At the stern, I rig a cross to hold the mast. This is little more than two pieces of cheap pine with a big bolt through them. As you can see, these are held in place with various ropes. One to the back of the tiller, which also ties to the traveller bar. This gives fore/aft stability to the wood. Next there is a rope from the top to the cleat on the port and starboard side deck which also then go on to tie the base of the wood to the pushpit in order to stop the bottom sliding about. This hold it fairly strongly in place ready for the mast.

As you'll also see in the picture above, I have taped everything up to the mast. Start this off by undoing the cables for lights and aerial and tape these to the stern side of the mast. A tabernacle makes an excellent scissor and will cut the cables if they are in any way loose. Luckily I found this out as I dropped the mast to replace the cables!
Next, remove the boom completely and bring forward the various lines tied to it. The sheet will come off and stay at the stern, the vang will sit on the coachroof, and the topping lift and lazy jacks come to the mast along with the halyard which will need removing from the main. Tape these to the mast with as little play as you can so that you don't later have ropes all over the place. I used to use electrical tape for this but duck tape (AKA gaffer tape) is much easier and neater as well as being easier to remove later by ripping it. Once you're happy with the ropes, it's on to the rigging.

Loosen all of the rigging screws, making sure to relax the tension all around before fully unscrewing. Although not necessary to loosen gradually first I think it puts less stress on the mast so I prefer to do it this way. Once these are all loose, I also loosen the bolts in the tabernacle. Remember that the top one will stay in while the mast lowers, but needs to be loose to allow movement The bottom one at this point can be loosened almost to the point of nut removal so that just before dropping the mast this is very quick to remove - you'll want to move calmly but quickly at that point so have everything ready.

This is my latest technique. I tie a piece of cord to each rigging wire with a bowline. This then goes through the deck eye and back three times to give me some leverage. I can then tighten it and tie off with some half hitches to stop the rig moving while keeping it ready to drop. This is also much quicker to do after raising than going straight to the screws, and you can pretension the wires before connecting the screws.
Finally, I remove the clevis pin from the forestay under the roller reefing. Here, I tie a rope to the bottom of the roller reefing which is led through the anchor roller and up to the coachroof. I use this rope to gently lower the mast until it's far enough down for me to just hold it. I then remove the cords from all rigging wires and the mast is essentially free standing. It can be helpful to tape the wires to the mast at this point to stop them going in the water if you're doing this on your pontoon/mooring (if you are, bear in mind that side to side movement can cause damage once the mast is free). The lower bolt in the tabernacle is next after putting tension on the rope to the forestay. The design of the tabernacle means you can lean the mast forward and it rests in place, so lean into it while removing the bolt so that it doesn't fall on you. Gently let the rope out and allow the mast to drop, standing near the (closed) hatch while it drops into your waiting arms. The further back you are the better your mechanical advantage for holding it up so don't be too close to the mast foot when doing this. You do, however, need to be on the coach roof since the rope won't be sufficient to hold the mast past a certain angle. Many use a pole in front of the mast to add leverage here but for me it's more effort than it's worth. Once the mast is in your hands, gently lower it to the wooden cross. This needs to be tall enough that you can easily lower into it from the roof as you don't want to be stepping down from the roof while holding the mast - trust me!

Tape the roller reefing to the front edge of the mast at this point to prevent damage to it, they bend easily and worse, get in the way while moving the mast. At this point you can remove the top tabernacle bolt.

Now it's just tidying up to do. Pick the mast up and slide it forward. You'll want to be near the middle of the mast for this part so it balances unless you have help. The base of the mast can slide through below the pulpit and stay sitting on the wooden cross.

Raising is simply the opposite to lowering :)

Parallel Pin Punch

I thought a little post on these might be a good idea since I suspect most people are unaware of them. When working on rigging, there is occasionally a pin which holds something in. On Live Magic, this is the case at the mast head where there are pins of around 5mm diameter holding blocks in place as well as to connect the standing rigging. By design, these pins are a tight fit, and although they do use split pins at either end to ensure they won't fall out they are extremely hard to remove. A hammer can be used to bash it up to a point, but then you need something small enough to go through the hole and keep pushing. Obviously, you could use a screwdriver or centre punch, but these will damage the pin and potentially spread the metal outwards, making it too large for the hole and therefore also even harder to remove. Enter the parallel pin punch, basically a round piece of metal with a flat end which is designed to push pins out of holes. They are really cheap too, so no excuses to not use them.
